Customized High Strength Impact Resistance Tungsten Carbide Strip with Precision Tolerances for Industrial Applications

Large Image : Customized High Strength Impact Resistance Tungsten Carbide Strip with Precision Tolerances for Industrial Applications

Product Details:

Place of Origin:	Sichuan, China
Brand Name:	Kedel
Model Number:	YG13C

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$3-15

Contact Now

Customized High Strength Impact Resistance Tungsten Carbide Strip with Precision Tolerances for Industrial Applications

Description

Material Composition:	Tungsten Carbide And Cobalt	Alloy Specification:	YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish:	Glossy	Shape:	Strip
Density Range:	12.00-14.90 G/cm³	Hardness Range:	86.5-93.6 HRA
TRS Range:	2000-3800 Mpa	Porosity Grade:	A02/B00/C00
Grain Size:	0.4-2.4 μm	Diameter Tolerance:	±0.5_+0.4 Mm (Unground), H6 (Fine Ground)
Length Tolerance:	+2_+6 Mm (Unground), ±2_+6 Mm (Fine Ground)	Diameter Range:	1.5-32 Mm
Length Range:	310-330 Mm	WC Content:	69.2-94.0%
Ni Content:	6.0-15.0%
Highlight:	YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Strip , High Strength Tungsten Carbide Plate , Impact Resistant Hard Alloy Strip

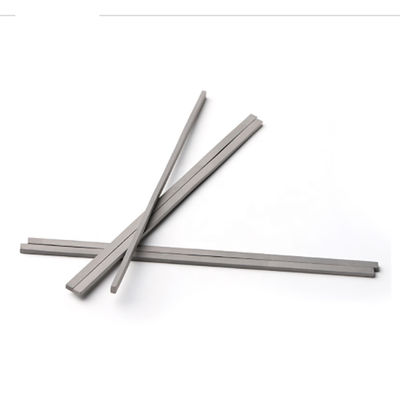

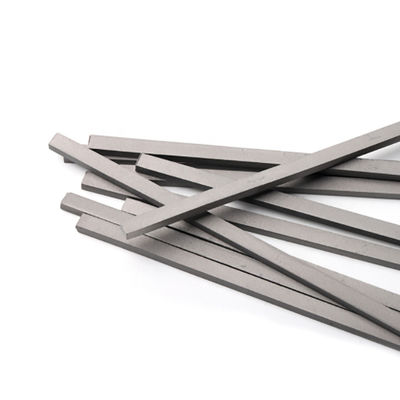

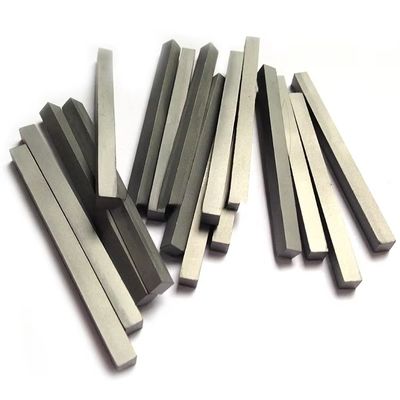

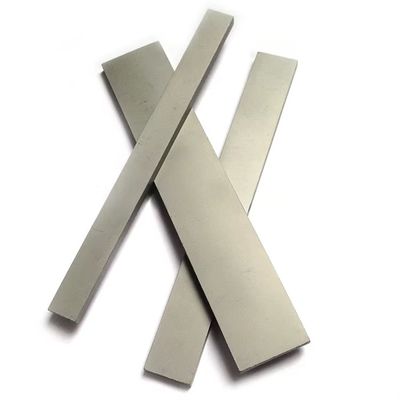

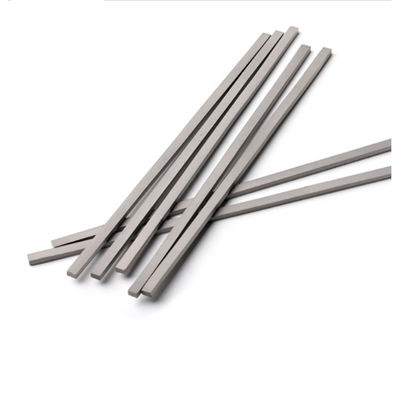

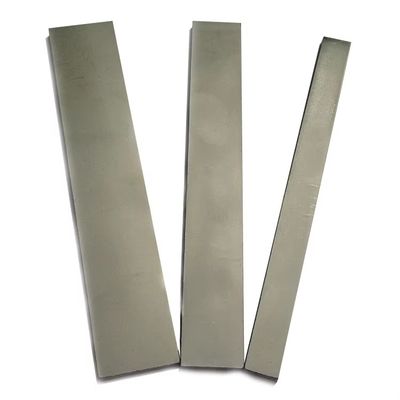

Customized High-Quality Tungsten Carbide Alloy Strip

Premium tungsten carbide alloy strips engineered for high strength and impact resistance, ideal for manufacturing fastener molds.

Product Description

Product Parameters

Grade	Composition(% in weight)	Physical Properties	Grain size(μm)
WC	Ni	Ti	TaC	A/B/C	Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.8	3800	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.5	2500	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.0	3200	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.0	3200	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.0	3200	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.5	3200	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.0	3200	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.5	3000	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.7	3500	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	13.0	-	-	14.20	87.0	3500	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.5	3500	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.5	3500	A02/B00/C00	1.6-2.4
KD118/YG8X	91.5	8.5	-	-	14.50	93.6	3800	A02/B00/C00	0.4-0.6
KD338/YG12X	88.0	12.0	-	-	14.10	92.8	2200	A02/B00/C00	0.4-0.6
KD25/P25	77.4	8.5	6.5	6.0	12.60	91.8	2200	A02/B00/C00	1.0-1.6
KD35/P35	69.2	10.5	5.2	13.8	12.70	91.1	2500	A02/B00/C00	1.0-1.6
KD10/M10	83.4	7.0	4.5	4.0	13.25	93.0	2000	A02/B00/C00	0.8-1.2
KD20/M20	79.0	8.0	7.4	3.8	12.33	92.1	2200	A02/B00/C00	0.8-1.2

NOTE: Customization available per customer drawing or actual sample

Unground Rods

D(mm)	Tolerance	L(mm)	Tolerance
1.5-32	±0.5_+0.4	310/330	+2_+6

Fine Grounded Rods

D(mm)	Tolerance	L(mm)	Tolerance
1.5-32	h6	310/330	±2_+6

Details Images

Why Choose Us

Company Profile

Exhibition

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.

FAQ

How to obtain an accurate quotation from Kedel Tools?

Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.

How does our company ensure the quality of its products?

We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.

How long does a typical production cycle take?

For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

What is our company's payment method?

We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL. 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
