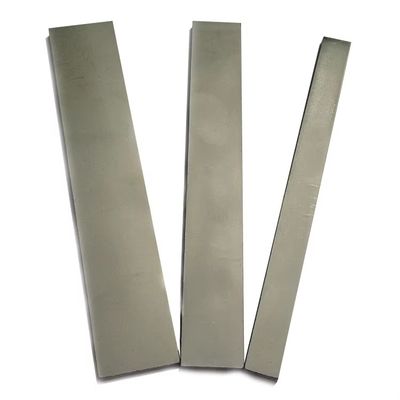

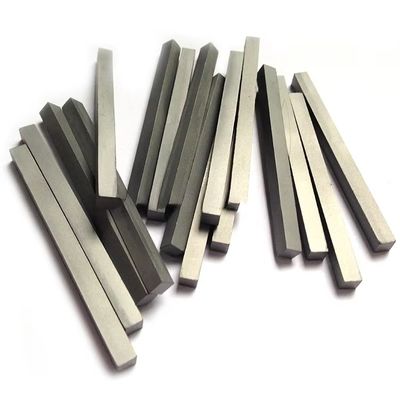

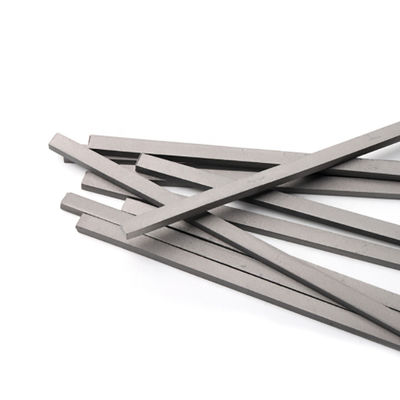

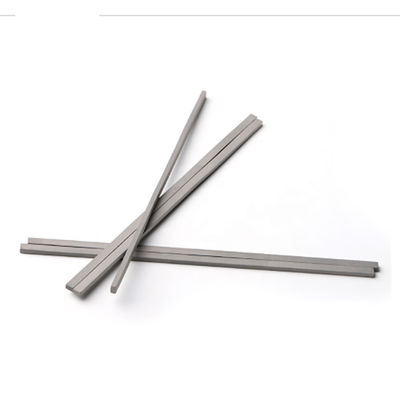

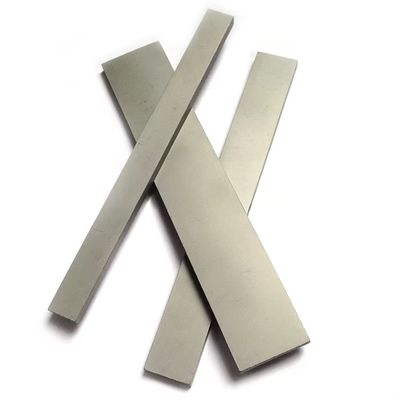

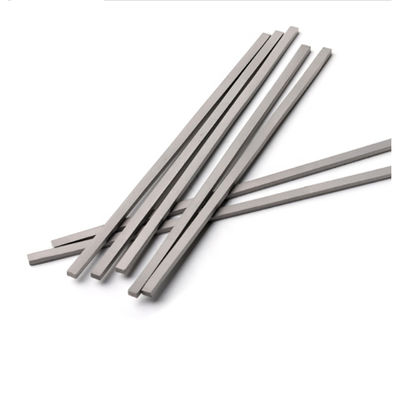

Customized Tungsten Carbide Bars and Strips for Mining Industry Drilling Tools and Rock Drilling Applications

Large Image : Customized Tungsten Carbide Bars and Strips for Mining Industry Drilling Tools and Rock Drilling Applications

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$10-14

Contact Now

Customized Tungsten Carbide Bars and Strips for Mining Industry Drilling Tools and Rock Drilling Applications

Description

Material Composition:	Tungsten Carbide And Cobalt	Alloy Specification:	YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish:	Glossy	Shape:	Strip
Density Range:	12.00-14.90 G/cm³	Hardness Range:	86.5-93.6 HRA
TRS Range:	2000-3800 Mpa	Porosity Grade:	A02/B00/C00
Grain Size:	0.4-2.4 μm	Diameter Range:	1.5-32 Mm
Diameter Tolerance:	±0.5_+0.4 Mm (Unground), H6 (Fine Ground)	Length:	310/330 Mm
Length Tolerance:	+2_+6 Mm (Unground), ±2_+6 Mm (Fine Ground)	WC Content:	69.2-94.0%
Ni Content:	6.0-15.0%
Highlight:	Customized Size Tungsten Carbide Bars , High Wear Resistance Tungsten Carbide Bars , YG8 YG6 YG6X YG9C YG11C YG13C Tungsten Carbide Bars

Customized Tungsten Carbide Alloy Bars for Mining Tools

Product Description

Product Parameters

Grade	Composition(% in weight)	Physical Properties	Grain size(μm)
WC	Ni	Ti	TaC	A/B/C	Densityg/cm³(±0.1)	HardnessHRA(±0.5)	TRS Mpa(min)	Porosity
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8

NOTE: Customization available per customer drawing or actual sample

Unground Rods Specifications

D(mm)	Tolerance	L(mm)	Tolerance
1.5-32	±0.5_+0.4	310/330	+2_+6

Fine Grounded Rods Specifications

D(mm)	Tolerance	L(mm)	Tolerance
1.5-32	h6	310/330	±2_+6

Product Details

Why Choose Us

Company Profile

Exhibition

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.

Frequently Asked Questions

How to obtain an accurate quotation from Kedel Tools?

Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.

How does our company ensure the quality of its products?

We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. This ensures the quality of the finished product.

How long does a typical production cycle take?

For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.

What is our company's payment method?

We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL. 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
