Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification

Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification
Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification

Large Image :  Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $0.80-3
Contact Now

Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification

Description
Material: 100% Tungsten Carbide Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Shape: Cylindrical Surface: Glossy
Color: Black Alloy Power Source: Electric
Engine Type: Electric Density: 12.00-14.90 G/cm³
Hardness: 86.5-93.6 HRA TRS: 2000-3800 Mpa
Porosity: A02/B00/C00 Grain Size: 0.4-2.4 μm
Ball Diameter: 15.88-57.15 Mm Seat Height: 12.7 Mm
Seat OD: 20.14-78.03 Mm
Highlight:

100% Tungsten Carbide Material Cemented Tungsten Carbide Ball Valve

,

YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification Tungsten Carbide Valve

,

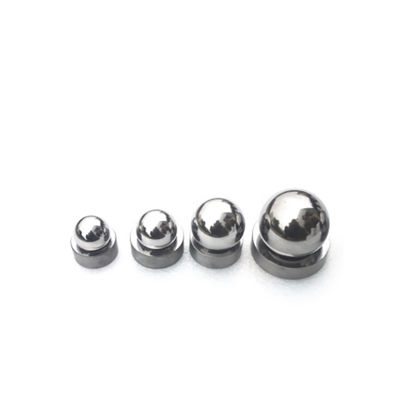

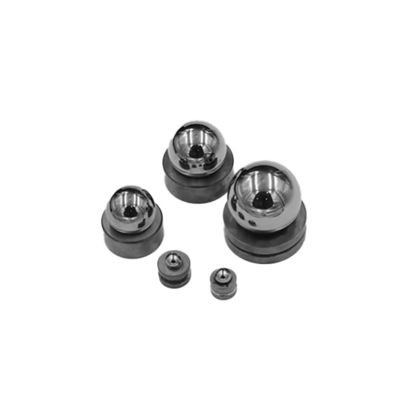

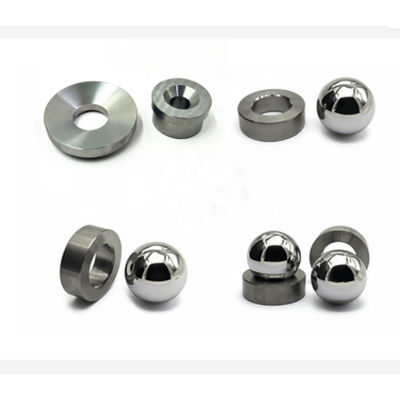

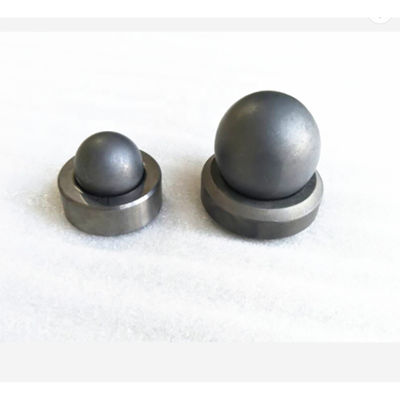

Customized Size Tungsten Carbide Valve Seat and Ball

Customized Cemented Tungsten Carbide Alloy Ball Valve With High Sealing Performance for the Chemical and Pharmaceutical Industry
Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 0 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 1
Product Description
Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 2 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 3
Product Parameters
Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 4 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 5
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
NOTE: Customization available per customer drawing or actual sample
API Type/Symbol V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375
Ball-D(mm) 5/8"15.88 3/4"19.05 15/16"23.83 1-1/8"28.58 1-1/8"28.58 1-3/8"34.93 12/3"42.88 2-1/4"57.15
Details Images
Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 6 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 7
Why Choose Us
Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 8 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 9
Company Profile
Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 10 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 11
Exhibition
Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 12 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 13 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 14 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 15 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 16 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 17 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 18 Customized Size Cemented Tungsten Carbide Ball Valve with 100% Tungsten Carbide Material and YG8 YG6 YG6X YG9C YG11C YG13C Alloy Specification 19
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.

Tag:

Tungsten Carbide Valve Seats,

Rod Deep Pump ball and seat valve,

API Oilfield Tungsten Carbide Valve
