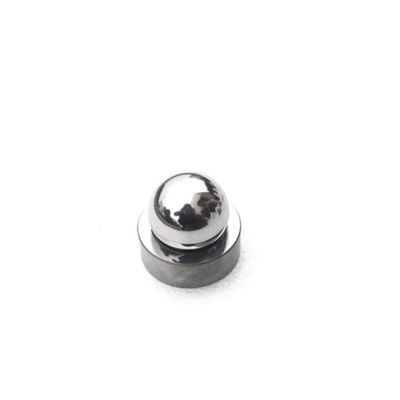

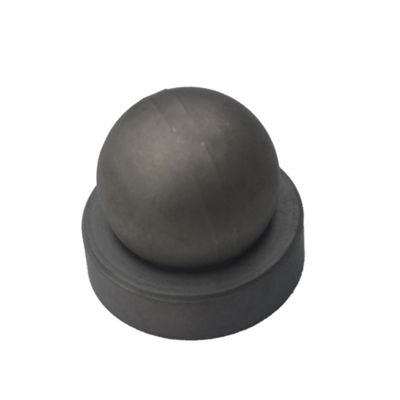

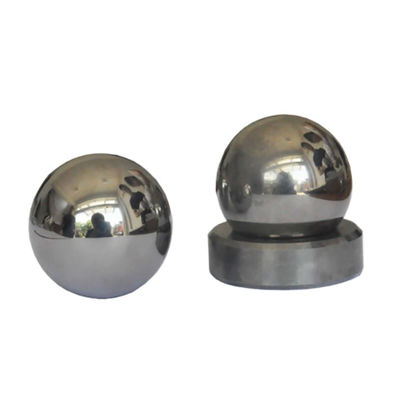

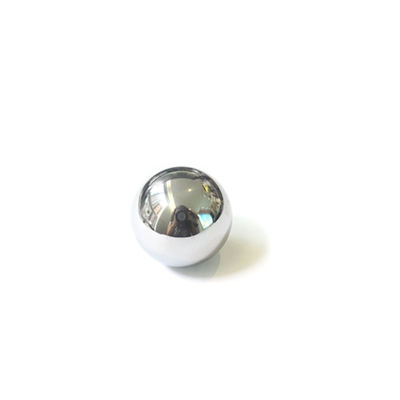

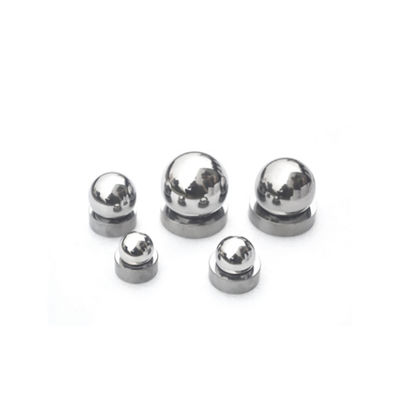

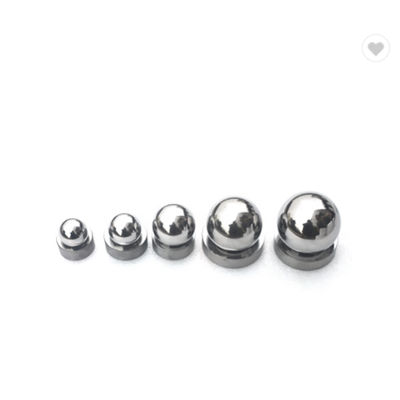

Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation

Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation
Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation

Large Image :  Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $0.90-3.10
Contact Now

Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation

Description
Material Composition: Tungsten Carbide And Cobalt Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish: Glossy Shape: Cylindrical
Color: Black Alloy Density: 14.75 G/cm³ (YG8)
Hardness: 90.0 HRA (YG8) TRS: 3200 Mpa (YG8)
Porosity: A02/B00/C00 Grain Size: 1.2-1.6 μm (YG8)
Ball Diameter: Customized (5/8" To 2-1/4") Seat Height: 12.7 Mm
Seat OD: 20.14 To 78.03 Mm Seat ID: 11.68 To 45.47 Mm
Radius: 1.6 To 3.5 Mm
Highlight:

YG8 Tungsten Carbide Ball Valve

,

High Pressure Resistance Tungsten Carbide Valve

,

Customized Size YG8 Valve

Customized Tungsten Carbide Alloy Ball Valve With High Wear Resistance, Corrosion Resistance, and High Pressure Resistance YG8
Product Overview
Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 0 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 0
Product Description
Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 2 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 2
Technical Specifications
Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 4 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 4
Grade Composition(% in weight) Physical Properties Grain size(μm)
WC Ni Ti TaC Density g/cm³(±0.1) Hardness HRA(±0.5) TRS Mpa(min) Porosity A/B/C
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
API Type/Symbol V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375
Ball-D(mm) 5/8"15.88 3/4"19.05 15/16"23.83 1-1/8"28.58 1-1/8"28.58 1-3/8"34.93 12/3"42.88 2-1/4"57.15
Seat-H(mm) 12.7 12.7 12.7 12.7 12.7 12.7 12.7 12.7
Seat-OD(mm) 20.14 23.32 29.67 35.26 37.57 43.69 51.05 78.03
Seat-ID(mm) 11.68 13.97 17.02 20.96 24.38 26.92 33.27 45.47
R 1.6 1.6 2 2 2.4 2.4 2.4 3.5
Product Gallery
Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 6 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 6
Why Choose Our Tungsten Carbide Ball Valves
Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 8 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 8
About Kedel Technology Co., Ltd.
Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 10 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 10
Our Exhibition Presence
Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 12 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 13 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 14 Customized YG8 Tungsten Carbide Ball Valve With High Pressure Resistance and Wear Resistance for Pipeline Transportation 15
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.

Tag:

Tungsten Carbide Valve Seats,

Rod Deep Pump ball and seat valve,

API Oilfield Tungsten Carbide Valve
