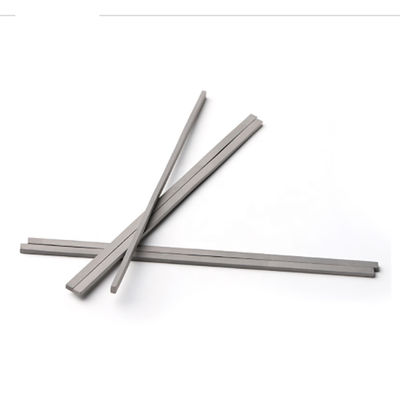

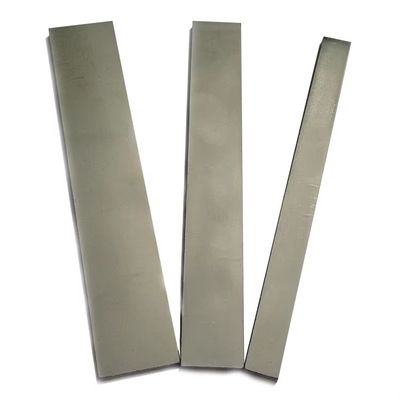

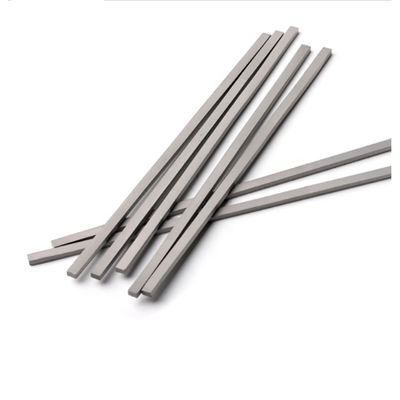

Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products

Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products
Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products

Large Image :  Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products

Product Details:
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: YG10
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: $3-15

Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products

Description
Material Composition: Tungsten Carbide And Cobalt Alloy Specification: YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish: Glossy Shape: Strip
Density Range: 12.00-14.90 G/cm³ Hardness Range: 86.5-93.6 HRA
TRS Range: 2000-3800 Mpa Porosity Grade: A02/B00/C00
Grain Size: 0.4-2.4 μm Diameter Range: 1.5-32 Mm
Diameter Tolerance: ±0.5_+0.4 Mm (Unground), H6 (Fine Ground) Length: 310/330 Mm
Length Tolerance: +2_+6 Mm (Unground), ±2_+6 Mm (Fine Ground) Minimum Order: 5 Pieces
Customization: Available Per Drawing/sample
Highlight:

YG8 YG9C Tungsten Carbide Strip

,

Customized Tungsten Carbide Strip

,

Glossy Tungsten Carbide Strip

Customized Tungsten Carbide Alloy Strip With High Wear Resistance
Product Description
Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products 0 Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products 1
Product Parameters
Customized YG8 YG9C Tungsten Carbide Strip with High Wear Resistance and Glossy Surface for Hard Alloy Processed Products 2
Grade Composition (% in weight) WC Ni Ti TaC Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity A/B/C Grain size (μm)
KD115/YG6X93.56.0-0.514.9093.02700A02/B00/C000.6-0.8
KD335/YG10X89.010.5-0.514.4091.83800A02/B00/C000.6-0.8
KG6/YG694.06.0--14.9090.52500A02/B00/C001.2-1.6
KG8/YG892.08.0--14.7590.03200A02/B00/C001.2-1.6
KG9/YG991.09.0--14.6089.03200A02/B00/C001.2-1.6
KG9C/YG9C91.09.0--14.6088.03200A02/B00/C001.6-2.4
KG10/KG1090.010.0--14.5088.53200A02/B00/C001.2-1.6
KG11/YG1189.011.0--14.3589.03200A02/B00/C001.2-1.6
KG11C/YG11C89.011.0--14.4087.53000A02/B00/C001.6-2.4
KG13/YG1387.013.0--14.2088.73500A02/B00/C001.2-1.6
KG13C/YG13C87.013.0--14.2087.03500A02/B00/C001.6-2.4
KG15/YG1585.015.0--14.1087.53500A02/B00/C001.2-1.6
KG15C/YG15C85.015.0--14.0086.53500A02/B00/C001.6-2.4
KD118/YG8X91.58.5--14.5093.63800A02/B00/C000.4-0.6
KD338/YG12X88.012.0--14.1092.82200A02/B00/C000.4-0.6
KD25/P2577.48.56.56.012.6091.82200A02/B00/C001.0-1.6
KD35/P3569.210.55.213.812.7091.12500A02/B00/C001.0-1.6
KD10/M1083.47.04.54.013.2593.02000A02/B00/C000.8-1.2
KD20/M2079.08.07.43.812.3392.12200A02/B00/C000.8-1.2
NOTE: Customization available per customer drawing or actual sample
Unground Rods Specifications
D (mm) Tolerance L (mm) Tolerance
1.5-32 ±0.5/+0.4 310/330 +2/+6
Fine Grounded Rods Specifications
D (mm) Tolerance L (mm) Tolerance
1.5-32 h6 310/330 ±2/+6

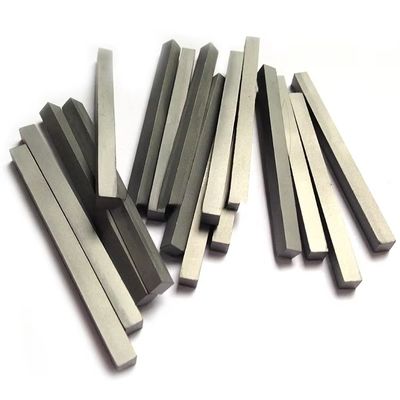

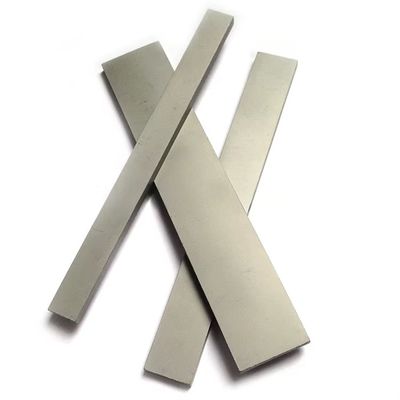

Details Images
