Customized YG8 YG6 YG6X Tungsten Carbide Strip with High Hardness and Wear Resistance for Structural Parts

Large Image : Customized YG8 YG6 YG6X Tungsten Carbide Strip with High Hardness and Wear Resistance for Structural Parts

Product Details:

Place of Origin:	China

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	$10-15

Contact Now

Customized YG8 YG6 YG6X Tungsten Carbide Strip with High Hardness and Wear Resistance for Structural Parts

Description

Material Composition:	Tungsten Carbide And Cobalt	Alloy Specification:	YG8, YG6, YG6X, YG9C, YG11C, YG13C
Surface Finish:	Glossy	Shape:	Strip
Density Range:	12.00-14.90 G/cm³	Hardness Range:	86.5-93.6 HRA
TRS Range:	2000-3800 Mpa	Porosity Grade:	A02/B00/C00
Grain Size:	0.4-2.4 μm	Diameter Tolerance:	±0.5_+0.4 Mm
Length Tolerance:	+2_+6 Mm	Fine Ground Diameter:	1.5-32 Mm
Fine Ground Tolerance:	H6	Fine Ground Length:	310/330 Mm
Fine Ground Length Tolerance:	±2_+6 Mm
Highlight:	YG8 Tungsten Carbide Strip , YG6 Tungsten Carbide Strip , YG6X Tungsten Carbide Strip

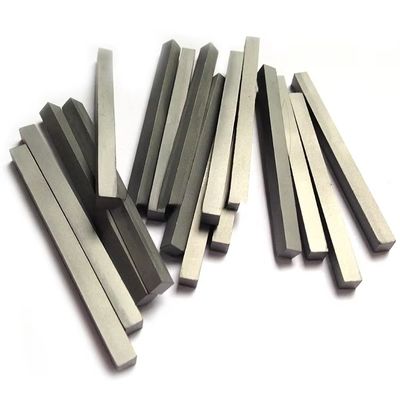

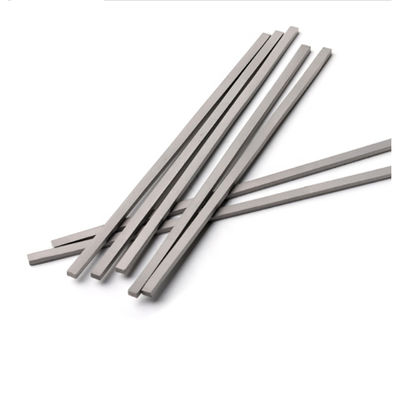

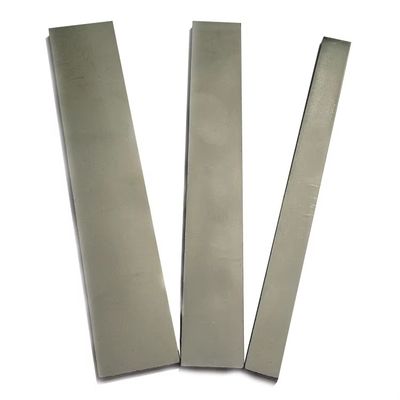

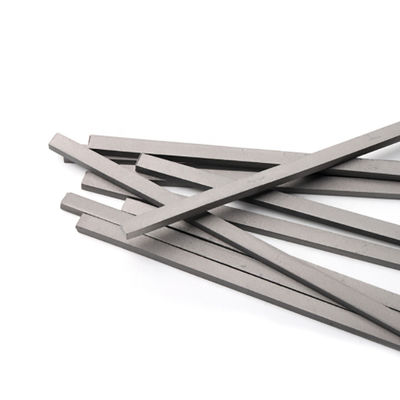

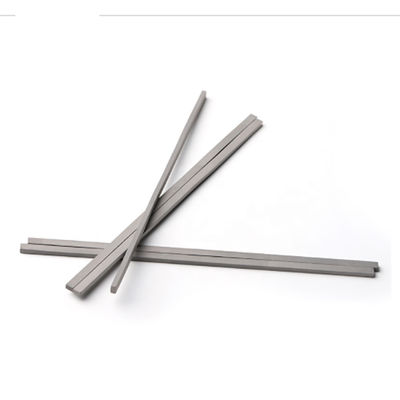

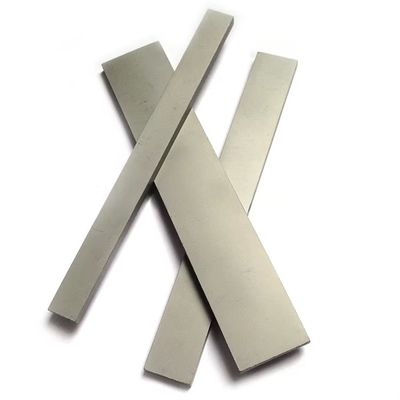

Customized Tungsten Carbide Alloy Strip

High hardness and wear resistant tungsten carbide alloy strips for structural parts including lathe chucks and grinder spindles.

Product Parameters

Grade	Composition (% in weight)				Physical Properties				Grain size (μm)
	WC	Ni	Ti	TaC	Density g/cm³ (±0.1)	Hardness HRA (±0.5)	TRS Mpa (min)	Porosity A/B/C
KD115/YG6X	93.5	6.0	-	0.5	14.90	93.0	2700	A02/B00/C00	0.6-0.8
KD335/YG10X	89.0	10.5	-	0.5	14.40	91.8	3800	A02/B00/C00	0.6-0.8
KG6/YG6	94.0	6.0	-	-	14.90	90.5	2500	A02/B00/C00	1.2-1.6
KG8/YG8	92.0	8.0	-	-	14.75	90.0	3200	A02/B00/C00	1.2-1.6
KG9/YG9	91.0	9.0	-	-	14.60	89.0	3200	A02/B00/C00	1.2-1.6
KG9C/YG9C	91.0	9.0	-	-	14.60	88.0	3200	A02/B00/C00	1.6-2.4
KG10/KG10	90.0	10.0	-	-	14.50	88.5	3200	A02/B00/C00	1.2-1.6
KG11/YG11	89.0	11.0	-	-	14.35	89.0	3200	A02/B00/C00	1.2-1.6
KG11C/YG11C	89.0	11.0	-	-	14.40	87.5	3000	A02/B00/C00	1.6-2.4
KG13/YG13	87.0	13.0	-	-	14.20	88.7	3500	A02/B00/C00	1.2-1.6
KG13C/YG13C	87.0	13.0	-	-	14.20	87.0	3500	A02/B00/C00	1.6-2.4
KG15/YG15	85.0	15.0	-	-	14.10	87.5	3500	A02/B00/C00	1.2-1.6
KG15C/YG15C	85.0	15.0	-	-	14.00	86.5	3500	A02/B00/C00	1.6-2.4
KD118/YG8X	91.5	8.5	-	-	14.50	93.6	3800	A02/B00/C00	0.4-0.6
KD338/YG12X	88.0	12.0	-	-	14.10	92.8	2200	A02/B00/C00	0.4-0.6
KD25/P25	77.4	8.5	6.5	6.0	12.60	91.8	2200	A02/B00/C00	1.0-1.6
KD35/P35	69.2	10.5	5.2	13.8	12.70	91.1	2500	A02/B00/C00	1.0-1.6
KD10/M10	83.4	7.0	4.5	4.0	13.25	93.0	2000	A02/B00/C00	0.8-1.2
KD20/M20	79.0	8.0	7.4	3.8	12.33	92.1	2200	A02/B00/C00	0.8-1.2

NOTE: Customization available per customer drawing or actual sample

Unground Rods

D (mm)	Tolerance	L (mm)	Tolerance
1.5-32	±0.5/+0.4	310/330	+2/+6

Fine Grounded Rods

D (mm)	Tolerance	L (mm)	Tolerance
1.5-32	h6	310/330	±2/+6
